Metrikus (finom) gépi menetfúró EH HSS-G (rövid kivitel)
Rendelhető méretek: M6-M32-ig

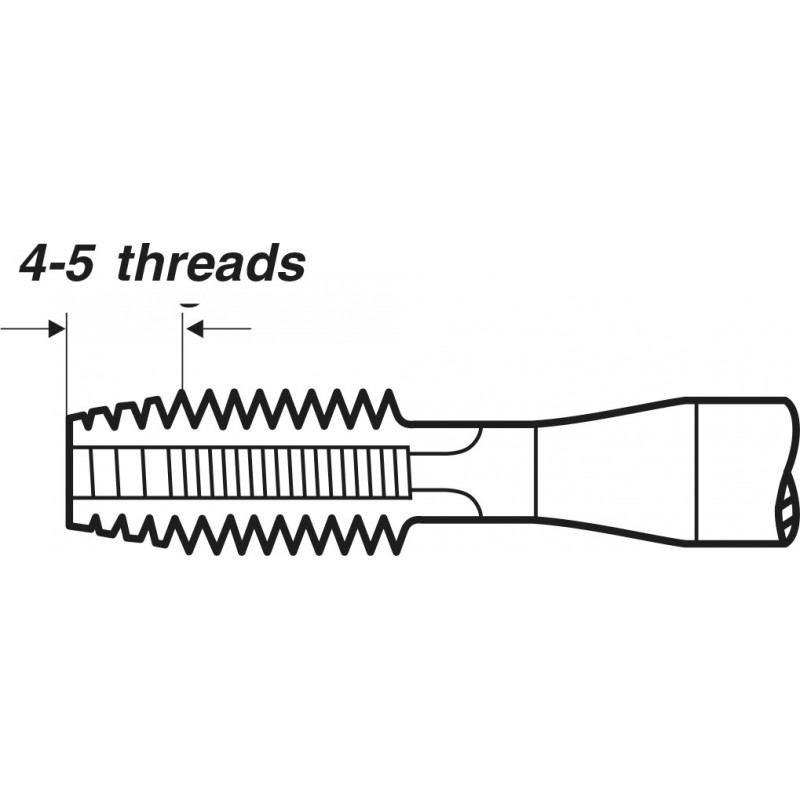

FORM D (Terelőhornyos)
DIN2181

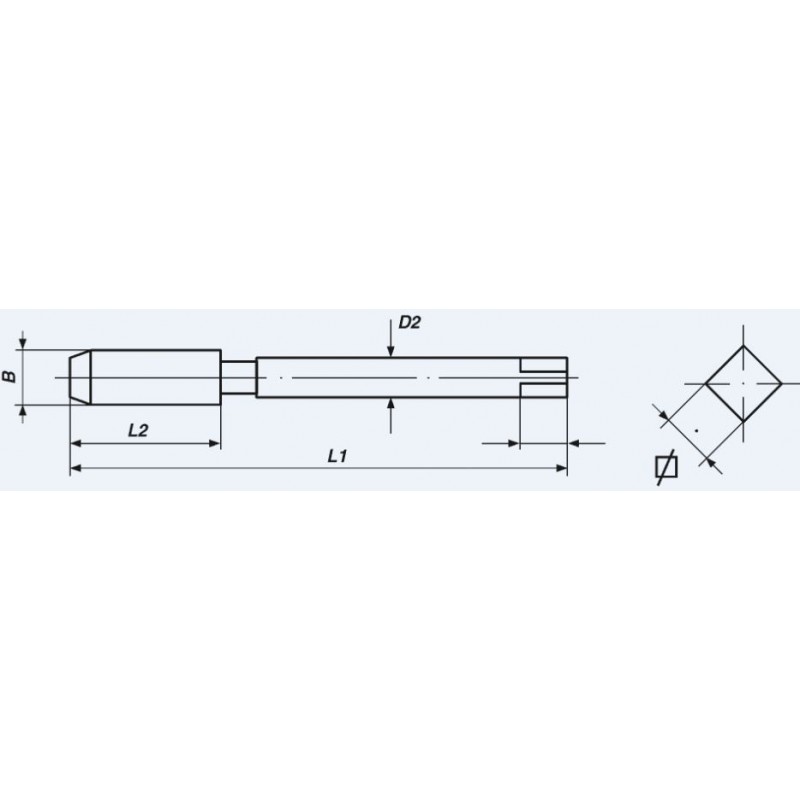

| Menet méret | L1 | L2 | D2 |  |
Rendelésiszám |
| DIN2181 FormD | |||||
| M 6 x 0,75 | 50 | 14 | 6,0 | 4,9 | 66318 |
| M 8 x 0,75 | 50 | 19 | 6,0 | 4,9 | 66324 |
| M 8 x 1 | 56 | 22 | 6,0 | 4,9 | 66326 |
| M 9 x 0,75 | 56 | 19 | 7,0 | 5,5 | 66328 |
| M 9 x 1,0 | 63 | 20 | 7,0 | 5,5 | 66330 |
| M 10 x 0,75 | 63 | 20 | 7,0 | 5,5 | 66332 |
| M 10 x 1 | 63 | 20 | 7,0 | 5,5 | 66336 |
| M 10 x 1,25 | 70 | 24 | 7,0 | 5,5 | 66338 |
| M 12 x 0,5 | 70 | 22 | 9,0 | 7,0 | 66345 |
| M 12 x 0,75 | 70 | 22 | 9,0 | 7,0 | 66343 |
| M 12 x 1,0 | 70 | 22 | 9,0 | 7,0 | 66344 |
| M 12 x 1,25 | 70 | 22 | 9,0 | 7,0 | 66346 |
| M 12 x 1,5 | 70 | 22 | 9,0 | 7,0 | 66348 |
| M 13 x 1,0 | 70 | 22 | 11,0 | 9,0 | 66350 |
| M 13 x 1,5 | 70 | 22 | 11,0 | 9,0 | 66351 |
| M 14 x 1,0 | 70 | 22 | 11,0 | 9,0 | 66353 |
| M 14 x 1,25 | 70 | 22 | 11,0 | 9,0 | 66354 |
| M 14 x 1,5 | 70 | 22 | 11,0 | 9,0 | 66356 |
| M 15 x 1,5 | 70 | 22 | 12,0 | 9,0 | 66360 |
| M 16 x 1,5 | 70 | 22 | 12,0 | 9,0 | 66366 |
| M 18 x 1,0 | 80 | 22 | 14,0 | 11,0 | 66370 |
| M 18 x 1,5 | 80 | 22 | 14,0 | 11,0 | 66372 |
| M 20 x 1,5 | 80 | 22 | 16,0 | 12,0 | 66384 |
| M 20 x 2,0 | 80 | 22 | 16,0 | 12,0 | 66386 |
| M 22 x 1,5 | 80 | 22 | 18,0 | 14,5 | 66394 |
| M 22 x 2,0 | 80 | 22 | 18,0 | 14,5 | 66396 |
| M 24 x 1,5 | 90 | 22 | 18,0 | 14,5 | 66504 |
| M 24 x 2,0 | 90 | 22 | 18,0 | 14,5 | 66506 |
| M 25 x 1,5 | 90 | 22 | 18,0 | 14,5 | 66508 |
| M 26 x 1,5 | 90 | 22 | 18,0 | 14,5 | 66512 |
| M 27 x 1,5 | 90 | 22 | 20,0 | 16,0 | 55517 |
| M 28 x 1,5 | 90 | 22 | 20,0 | 16,0 | 66522 |
| M 30 x 1,5 | 90 | 22 | 22,0 | 18,0 | 66530 |
| M 30 x 2,0 | 90 | 22 | 22,0 | 18,0 | 66532 |
| M 32 x 1,5 | 90 | 22 | 22,0 | 18,0 | 66536 |
