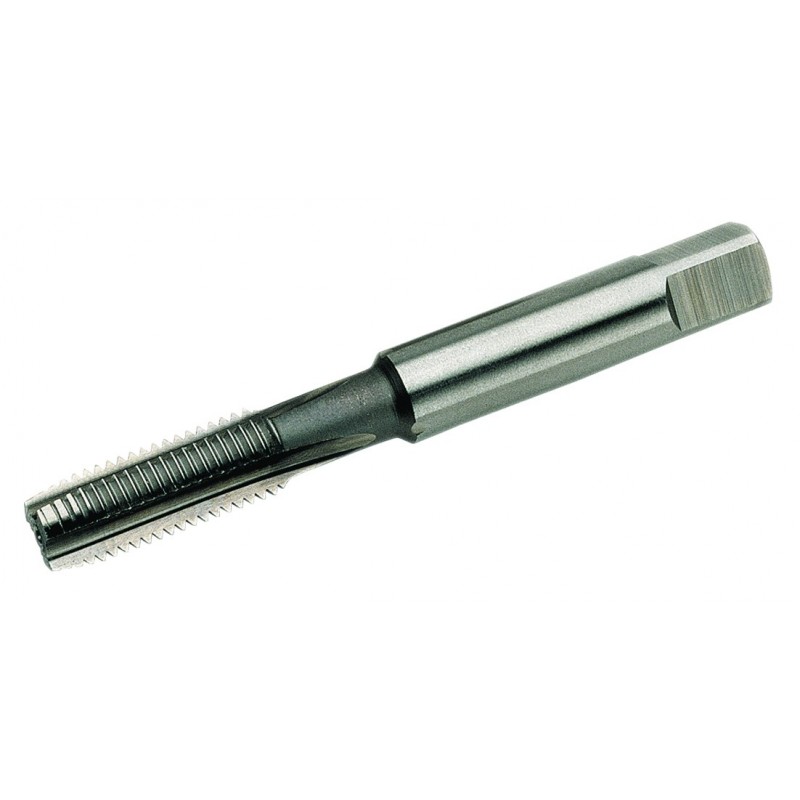

UNF Gépi menetfúró EH HSS-G (STI)
Rendelhető méretek: No.2-No.12 , 1/4-1"-ig
FormD
UNF/NF

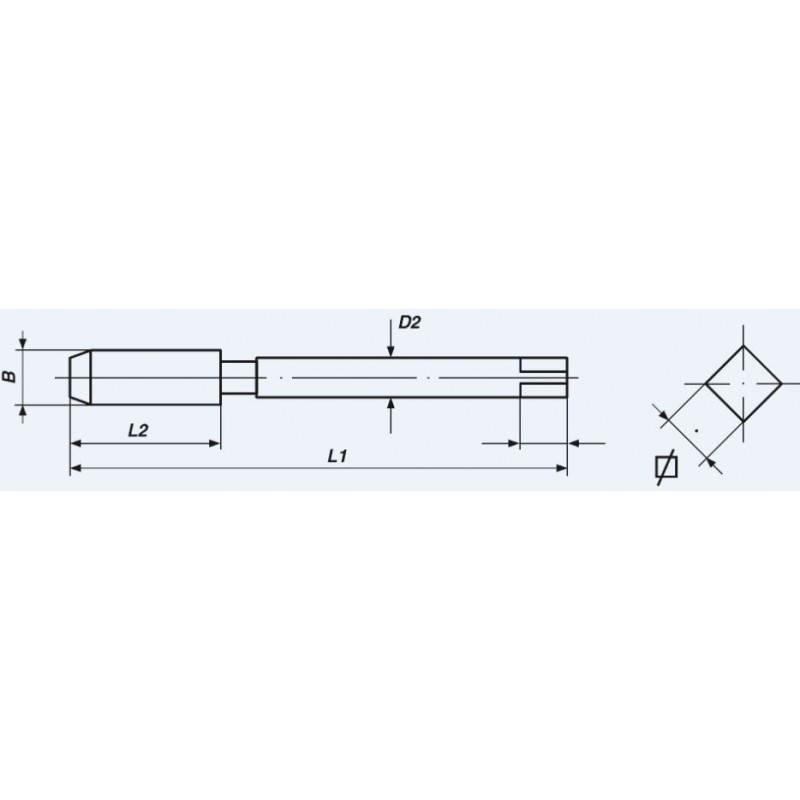

| Menet |
P | D | L 1 teljes hossza |
L 2 vágórész hossza |
D 2 szárátmérő |
négyszög laptáv |
| No. 4 x 48 | x 0.529 | 3.5 | 53.0 | 13.0 | 4.0 | 3.15 |
| No. 6 x 40 | x 0.635 | 4.3 | 53.0 | 13.0 | 4.5 | 3.55 |
| No. 8 x 36 | x 0.706 | 5.1 | 62.0 | 17.0 | 5.6 | 4.50 |
| No.10 x 32 | x 0.794 | 5.9 | 66.0 | 19.0 | 6.3 | 5.00 |
| 1/4 x 28 | x 0.907 | 7.5 | 69.0 | 19.0 | 8.0 | 6.30 |
| 5/16 x 24 | x 1.058 | 9.3 | 76.0 | 20.0 | 10.0 | 8.00 |
| 3/8 x 24 | x 1.058 | 10.9 | 82.0 | 22.0 | 8.0 | 6.30 |
| 7/16 x 20 | x 1.270 | 12.8 | 84.0 | 24.0 | 9.0 | 7.10 |
| 1/2 x 20 | x 1.270 | 14.4 | 90.0 | 25.0 | 11.2 | 9.00 |
| 9/16 x 18 | x 1.411 | 16.1 | 104.0 | 29.0 | 12.5 | 10.00 |
| 5/8 x 18 | x 1.411 | 17.7 | 104.0 | 29.0 | 14.0 | 11.20 |
| 3/4 x 16 | x 1.588 | 21.1 | 104.0 | 29.0 | 14.0 | 11.20 |
| 7/8 x 14 | x 1.814 | 24.6 | 120.0 | 35.0 | 18.0 | 14.00 |
| 1'' x 12 | x 2.117 | 28.2 | 127.0 | 37.0 | 20.0 | 16.00 |
| 1'' x 14 | x 1.814 | 27.8 | 127.0 | 37.0 | 20.0 | 16.00 |
Völkel-03164
